1050


JIS : S50 C

DAIDO : S50 C

ASSAB : 760

1050

JISAISIWNrDIN
S50C/5310501.12131.1730


CHEMICAL COMPOSITION(Typical Analysis %)

CSiMn
0.500.300.70

STEEL PROPERTIES

1050 is an easily machinable carbon steel characterize by good machinability or good mechanical strength



PHYSICAL PROPERTIES

Thermal coductivity W/(m.K)    200°C/40   400°C/41 600°C/27
Density g/cm3   20°C/7.87 200°C/7.82 400°C/7.75


Coefficient of linear thermal expansion

10-1 °C-120-100°C20-200°C20-300°C20-400°C
-12.0-13.5


APPLICATIONS

Punch holders, Die holders, Guide plates, Backing plates, Jigs, Fixtures, Simple bending dies, and simple structural components



HEAT TREATMENT

SOFT ANNEALING(°C)COOLINGHARDNESS (HB)
700FURNACEMAX. 200

HARDENING FROM(°C)INHARDNESS AFTER QUENCHING (HRC)
820-870WATER57±3 HRC

TEMPERING (°C)200250300400500600
HARDNESS (HRC) WATER585653453727
HARDNESS (HRC) OIL313029272520

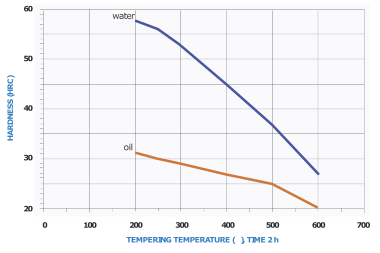

TEMPERING DIAGRAM
